Deye 12 kW Hybrid Inverter – 3 Phase: Your Smart Energy Solution for a Powerful Future

Unleash Uninterrupted Power with the Deye 12 kW Hybrid Inverter – 3 Phase

Imagine a world where your home or business never experiences a power outage. A place where you generate your own clean electricity, store it for later, and even send extra power back to the grid. This isn’t a futuristic dream; it’s a reality with the Deye 12 kW Hybrid Inverter – 3 Phase.

This amazing piece of technology is like the brain of your solar power system, making sure you always have the energy you need, exactly when you need it. It’s built for bigger homes and businesses that use three-phase power, offering incredible strength, smart features, and peace of mind.

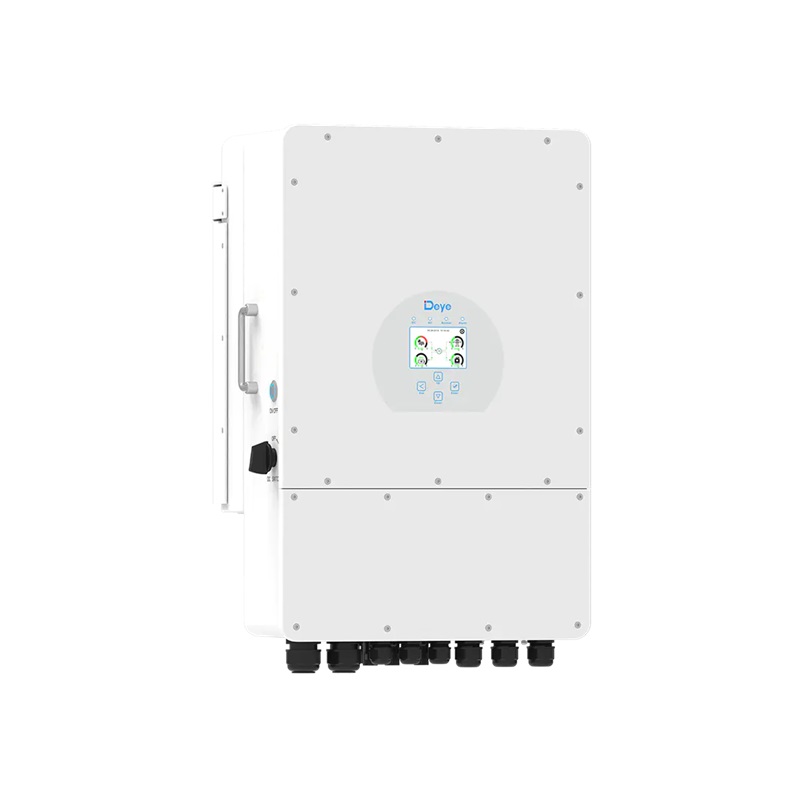

The Deye 12 kW Hybrid Inverter – 3 Phase (Model: SUN-12K-SG04LP3-EU) is designed to be super smart and super strong. It’s not just about turning sunshine into electricity; it’s about managing all your power sources – solar panels, batteries, and even the main power grid – to work perfectly together. This means you get reliable power, save money on electricity bills, and help the planet all at the same time.

Why the Deye 12 kW Hybrid Inverter – 3 Phase is a Game-Changer for Your Energy Needs

When it comes to choosing an inverter for a large home or business, you need something that can handle a lot of power and is very clever. The Deye 12 kW Hybrid Inverter – 3 Phase stands out from the crowd because it offers:

• Total Energy Control: This isn’t just an inverter; it’s a complete energy management system. It decides when to use solar power, when to charge your batteries, when to use power from the grid, and even when to send your extra solar power back to the grid to earn credits. It’s like having a super-smart energy assistant working for you 24/7.
• Ready for Anything: Whether the grid goes down, the sun isn’t shining, or you have a sudden spike in power needs, the Deye 12 kW Hybrid Inverter – 3 Phase is ready. It can switch between different power sources incredibly fast, so you might not even notice a flicker when the grid fails. This is crucial for businesses where even a short power loss can cost a lot of money.
• Future-Proof Design: Your energy needs might grow, and this inverter can grow with you. You can connect up to 10 of these inverters together in parallel. This means you can start with one and add more later if you need even more power for your home or business. It’s a truly scalable solution.

Key Features of the Deye 12 kW Hybrid Inverter – 3 Phase: Powering Your World

Let’s dive into some of the cool things the Deye 12 kW Hybrid Inverter – 3 Phase can do. These features are what make it such a reliable and efficient choice for your three-phase power system.

Powerful Output for Big Needs

The Deye 12 kW Hybrid Inverter – 3 Phase delivers a strong 12,000 watts of power. This is enough to run most large homes or small to medium businesses. What’s more, it can handle quick bursts of even higher power – up to twice its rated power for 10 seconds. Think of it like this: your car can drive at a certain speed all day, but it can also quickly accelerate for a few seconds to overtake another car. This “peak power” feature means your inverter can easily handle things like air conditioners or large machinery starting up, which usually need a lot of power for a brief moment.

Smart Battery Management

Batteries are a big part of any hybrid solar system, and the Deye 12 kW Hybrid Inverter – 3 Phase is very clever about how it works with them. It’s compatible with both old-school lead-acid batteries and the newer, more advanced lithium-ion batteries.

For lithium-ion batteries, it can “self-adapt to BMS”. BMS stands for Battery Management System, and it’s like the battery’s own mini-computer that keeps it safe and working well.

The inverter talks to the BMS to make sure the battery is charged and discharged in the best way possible, which helps your batteries last longer.

Plus, this Deye 12 kW Hybrid Inverter – 3 Phase has a really high charging and discharging current of 240 Amps. This means it can quickly fill up your batteries when there’s lots of sunshine and also quickly pull power from them when you need it.

It also lets you set up to 6 different time periods for charging and discharging your battery. So, you could set it to charge only when electricity from the grid is cheapest, or to discharge power during peak hours to save money.

Maximum Solar Harvest with Dual MPPT

Your solar panels collect sunshine, but the inverter makes sure you get the most electricity from them. The Deye 12 kW Hybrid Inverter – 3 Phase has two “MPPTs”. MPPT stands for Maximum Power Point Tracker. Think of it like having two separate systems to collect energy from your solar panels. This is great if your panels are facing different directions, or if some are in the shade while others are in full sun. Each MPPT finds the best way to get power from its set of panels, so you always get the most electricity possible.

This inverter can handle a huge amount of solar panel power – up to 24,000 Watts of “PV Access Power”. This means you can connect more solar panels than the inverter’s usual power rating, which is great for getting more energy even on cloudy days.

Generator Friendly

Even with solar and batteries, sometimes you might need a little extra help, especially during long periods of bad weather. The Deye 12 kW Hybrid Inverter – 3 Phase can work with a diesel generator. This is a fantastic backup plan.

Not only can it use power from the generator to run your home, but it can also store that energy in your batteries. So, if the grid is down for a long time and your batteries run low, your generator can kick in, charge the batteries, and then shut off, saving fuel.

Built Tough for the Outdoors

This Deye 12 kW Hybrid Inverter – 3 Phase is designed to live outdoors. It has an “IP65 rating”. This means it’s super protected against dust and water, so you don’t have to worry about it getting damaged by rain or dirt. It also has a smart cooling system that uses air to keep it from getting too hot, and it’s designed to reduce dust build-up, which helps it last even longer. You can rely on this Deye 12 kW Hybrid Inverter – 3 Phase to keep working no matter the weather.

Deye 12 kW Hybrid Inverter – 3 Phase: The Technical Details

Now, let’s look at the numbers and facts that show just how powerful and reliable the Deye 12 kW Hybrid Inverter – 3 Phase is. All this information comes directly from the product’s official datasheet.

Battery Input Data: How It Manages Your Stored Energy

The Deye 12 kW Hybrid Inverter – 3 Phase is excellent at managing your battery power:

• Battery Type: It can work with both traditional Lead-acid batteries and modern Lithium-ion batteries.
• Battery Voltage Range (V): It operates with batteries that have a voltage between 40 and 60 Volts.
• Max. Charging Current (A): It can charge your batteries with a strong 240 Amps. This means faster charging times.
• Max. Discharging Current (A): It can also pull power from your batteries at 240 Amps, ensuring your home or business gets the power it needs quickly.
• Charging Strategy for Li-ion Battery: It “self-adapts to BMS”, meaning it talks to your lithium battery’s brain to charge it safely and efficiently.
• Number of Battery Input: It has one main connection for your battery bank.

PV String Input Data: Getting the Most from Your Solar Panels

The Deye 12 kW Hybrid Inverter – 3 Phase is designed to grab every bit of sunshine your panels produce:

• Max. PV Access Power (W): You can connect up to a massive 24,000 Watts of solar panels to this inverter. This is great for getting more power, even on cloudy days.
• Max. PV Input Power (W): While you can connect 24,000W of panels, the inverter can actively use and convert up to 18,000 Watts of power from them at any time. This ensures it works efficiently and lasts a long time.
• Max. PV Input Voltage (V): It can handle a maximum solar panel voltage of 800 Volts.
• Start-up Voltage (V): It starts working with solar power at just 160 Volts, meaning it can begin generating electricity earlier in the morning and later in the evening.
• MPPT Voltage Range (V): The sweet spot for getting the most power from your panels is between 200 and 650 Volts. The inverter constantly finds this sweet spot.
• Rated PV Input Voltage (V): Its ideal operating voltage for solar panels is 550 Volts.
• Max. Operating PV Input Current (A): It can handle a maximum operating current of 26+13 Amps.
• Max. Input Short-Circuit Current (A): It’s safely designed to handle short-circuit currents of up to 34+17 Amps.
• No. of MPP Trackers/No. of Strings MPP Tracker: It has 2 MPPTs, with 2 strings connected to one and 1 string to the other (2/2+1). This allows for flexible solar panel setup.

AC Input/Output Data: Delivering Power to Your Home or Business

The Deye 12 kW Hybrid Inverter – 3 Phase provides stable and clean electricity to your loads:

• Rated AC Input/Output Active Power (W): It provides a steady 12,000 Watts (or 12 kW) of power.
• Max. AC Input/Output Apparent Power (VA): It can deliver up to 13,200 VA of apparent power.
• Rated AC Input/Output Current (A): It typically provides 18.2 Amps per phase (at 380V) or 17.4 Amps per phase (at 400V).
• Max. AC Input/Output Current (A): It can supply a maximum of 20 Amps per phase (at 380V) or 19.1 Amps per phase (at 400V).
• Max. Continuous AC Passthrough (grid to load) (A): It can pass through up to 45 Amps continuously from the grid to your loads.
• Peak Power (off-grid) (W): As mentioned, it can deliver twice its rated power for 10 seconds – that’s 24,000 Watts for short bursts!
• Power Factor Adjustment Range: It’s flexible, working with a power factor from 0.8 leading to 0.8 lagging, which means it can efficiently handle different types of electrical loads.
• Rated Input/Output Voltage/Range (V): It’s designed for three-phase systems at 220/380V or 230/400V, with a working range of 0.85 to 1.1 times the normal voltage.
• Rated Input/Output Grid Frequency/Range(Hz): It works with standard grid frequencies of 50 Hz (ranging 45-55 Hz) or 60 Hz (ranging 55-65 Hz).
• Grid Connection Form: It connects as a 3-phase, neutral, and earth system (3L+N+PE).
• Total Current Harmonic Distortion THDi: It produces very clean power, with less than 3% harmonic distortion, which is great for sensitive electronics.
• DC Injection Current: Keeps DC current injected into the grid very low, less than 0.5% of the nominal current.

Efficiency: Making the Most of Every Watt

The Deye 12 kW Hybrid Inverter – 3 Phase is super efficient, meaning less wasted energy:

• Max. Efficiency: It can convert energy with an impressive 97.6% maximum efficiency. That means almost all the power it takes in gets used!
• Euro Efficiency: Its average efficiency is 97.0%, showing its great performance in real-world conditions.
• MPPT Efficiency: Its MPPTs are incredibly efficient, over 99%, ensuring your solar panels always operate at their peak.

Equipment Protection: Built for Safety and Durability

Safety is a top priority, and the Deye 12 kW Hybrid Inverter – 3 Phase has many built-in protections:

• DC Polarity Reverse Protection: Prevents damage if solar panel wires are connected backward.
• AC Output Overcurrent Protection: Protects against too much current flowing out.
• Thermal Protection: Prevents overheating.
• AC Output Overvoltage Protection: Safeguards against too high voltage on the output.
• AC Output Short Circuit Protection: Shuts down if there’s a short circuit.
• DC Component Monitoring: Checks DC current levels to ensure safe operation.
• Arc Fault Circuit Interrupter (optional): An optional feature that detects dangerous electrical arcs.
• Anti-islanding Protection: Ensures the inverter safely disconnects from the grid during an outage.
• DC Switch: A built-in switch to easily turn off DC power from solar panels.
• Insulation Impedance Detection: Checks for proper electrical insulation.
• Residual Current Detection: Detects ground faults, preventing shocks.
• Surge Protection Level: It has TYPE II surge protection for both DC and AC, shielding it from power surges like lightning strikes.

General Data: Robust Design for All Conditions

The physical design of the Deye 12 kW Hybrid Inverter – 3 Phase is made to last:

• Operating Temperature Range (°C): It works reliably in a wide range of temperatures, from very cold (-40°C) to quite hot (+60°C), though its power might be slightly reduced above 45°C.
• Permissible Ambient Humidity: It can handle humidity from 0% to 100%, meaning it works well in all kinds of climates.
• Permissible Altitude: It works perfectly up to an altitude of 2000 meters.
• Noise (dB): It operates quietly, with noise levels typically less than 55 decibels – quieter than a normal conversation.
• Ingress Protection (IP) Rating: With an IP65 rating, it’s fully protected against dust and strong jets of water.
• Inverter Topology: It uses a “Non-Isolated” design.
• Over Voltage Category: Rated OVC II(DC) and OVC III(AC), indicating its safety against voltage spikes.

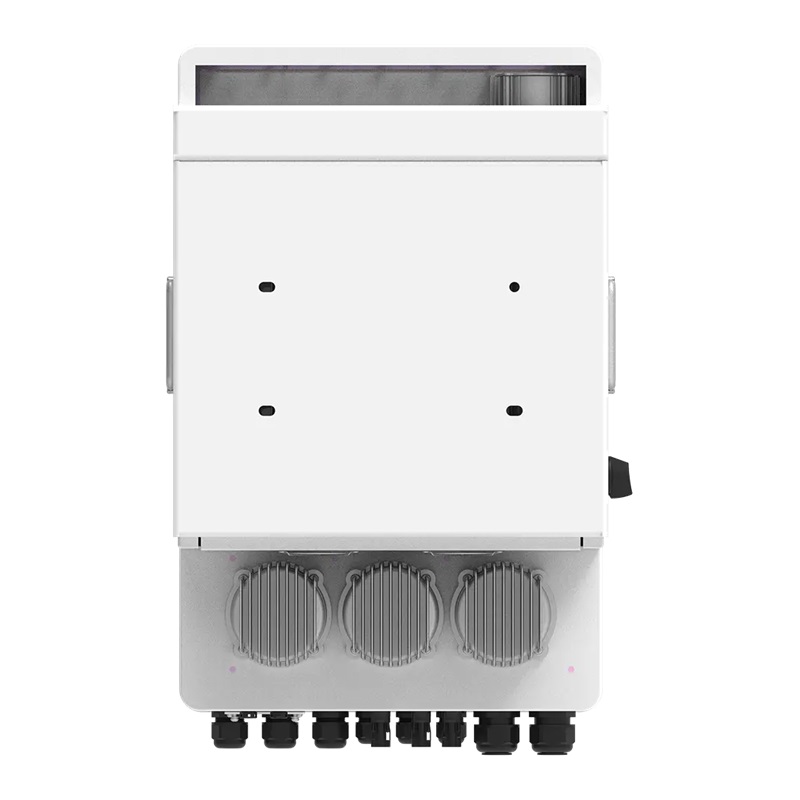

• Cabinet Size (WxHxD mm): Its dimensions are 422mm wide x 658mm high x 254mm deep, a compact size for its power.
• Weight (kg): It weighs 38 kg, which is manageable for installation.
• Type of Cooling: It uses “Intelligent Air Cooling”, which means it smartly uses fans to keep itself cool.
• Warranty: Comes with a standard 5-year warranty, with options to extend it to 10 years, giving you long-term confidence.

Interface & Monitoring: Stay Connected to Your Power

Staying informed about your power system is easy with the Deye 12 kW Hybrid Inverter – 3 Phase:

• Communication Interface: It has multiple ways to connect and share data, including RS485, RS232, and CAN. Plus, it supports optional GPRS, WIFI, Bluetooth, 4G, and LAN for remote monitoring.
• Monitor Mode: You can keep an eye on your system’s performance and energy flow through various monitoring modes.

For more in-depth information, you can download the Deye 12 kW Hybrid Inverter – 3 Phase Manual and Datasheet.

Embrace the Future of Energy with the Deye 12 kW Hybrid Inverter – 3 Phase

The Deye 12 kW Hybrid Inverter – 3 Phase is more than just a piece of equipment; it’s an investment in energy independence and a sustainable future. It’s perfect for large residential properties, commercial buildings, agricultural setups, or any application needing a robust and intelligent three-phase power solution.

By integrating solar power, battery storage, and grid interaction, this Deye 12 kW Hybrid Inverter – 3 Phase maximizes your energy savings, reduces your carbon footprint, and provides unmatched reliability. Say goodbye to power worries and hello to a smart, efficient, and powerful energy system.

Choose the Deye 12 kW Hybrid Inverter – 3 Phase for a seamless transition to a greener, more secure power supply. It’s engineered for peak performance, ease of use, and long-lasting durability, making it the ideal centerpiece for your advanced solar energy system. Get ready to experience true energy autonomy and contribute to a more sustainable world.
