Deye 6kw Off Grid Inverter: Unleash True Energy Independence

Your Power, Uninterrupted: Introducing the Deye 6kw Off Grid Inverter

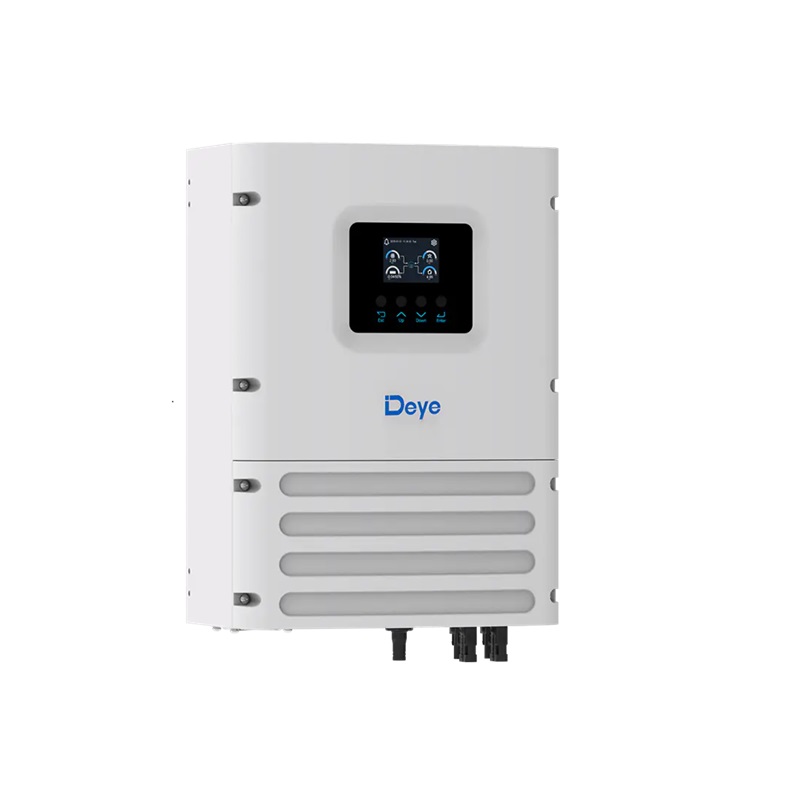

Imagine a reliable power source, completely independent of the national grid, delivering consistent energy to your home or business, no matter the conditions. The Deye 6kw off grid inverter (Model: SUN-6K-OG01LP1-EU-AM2) transforms this vision into reality. This robust single-phase off-grid inverter is specifically engineered to provide unparalleled energy autonomy, converting solar power and battery storage into a stable and clean electricity supply. Ideal for remote locations, backup power solutions, or anyone seeking complete energy freedom, the Deye 6kw off grid inverter is your gateway to uninterrupted living.

Why the Deye 6kw off grid inverter is Your Ultimate Off-Grid Solution:

Choosing the Deye 6kw off grid inverter means investing in a future of resilient and optimized power. Its superior design and advanced features are crafted to maximize your energy potential and provide ultimate peace of mind:

• Exceptional Off-Grid Performance: Designed specifically for stand-alone operation, this Deye 6kw off grid inverter ensures consistent power delivery, supporting a peak output of twice its rated power for up to 10 seconds to handle sudden surges.
• Flexible Battery Compatibility: Whether you prefer the proven reliability of lead-acid batteries or the advanced efficiency of lithium-ion, this inverter is fully compatible. It features self-adaptation to BMS (Battery Management System) for lithium-ion batteries, optimizing charging and discharging cycles for extended battery life.
• High Solar Harvest Capability: Maximize your solar energy capture. The Deye 6kw off grid inverter boasts two MPPTs and supports up to 12000W of PV access power, ensuring efficient energy collection even with oversized arrays or panels at various angles.
• Generator Integration for Enhanced Security: For ultimate resilience, this Deye 6kw off grid inverter supports storing energy from a diesel generator. This critical feature provides a robust backup, ensuring your power supply remains continuous during prolonged periods of low solar irradiance.
• Durable & Outdoor-Ready Design: Built with an IP65 rating, the Deye 6kw off grid inverter is designed to withstand tough environmental conditions. Its independent cooling system reduces dust accumulation, enhancing longevity and reliability.
• Seamless Parallel Scalability: Plan for future energy growth. This Deye 6kw off grid inverter supports parallel connection of up to 16 units (in similar models, for general off-grid systems), allowing you to expand your off-grid system incrementally to meet increasing power demands.
• High Efficiency & Pure Sine Wave Output: Enjoy clean, stable power. With a maximum efficiency of 97.60% and a pure sine wave output, the Deye 6kw off grid inverter safely powers sensitive electronics, minimizing harmonic distortion.

Deye 6kw off grid inverter: Detailed Technical Specifications

Here’s a closer look at the precise technical data that defines the robust performance and reliability of the Deye 6kw off grid inverter (Model: SUN-6K-OG01LP1-EU-AM2):

Battery Input Data: Robust Energy Storage Management

The deye 6kw off grid inverter is optimized for efficient and safe battery operation:

• Battery Type: Compatible with Lead-acid or Lithium-ion batteries.
• Battery Voltage Range (V): Operates within a stable 40-60V range.
• Max. Charging Current (A): Features a powerful 135A for rapid battery charging.
• Max. Discharging Current (A): Delivers a robust 136A for meeting various load demands.
• Charging Strategy for Li-ion Battery: Includes self-adaptation to BMS for intelligent battery management.
• Number of Battery Input: Equipped with a single battery input.

PV String Input Data: Maximizing Solar Harvest

Designed to extract optimal energy from your solar panels, the Deye 6kw off grid inverter provides excellent PV input capabilities:

• Max. PV Access Power (W): This inverter allows connection of up to 12000W of solar panel power. This capability enables “oversizing” your solar array, ensuring higher energy generation during less-than-ideal conditions (e.g., cloudy days, low sun angles) and maximizing the inverter’s operational uptime and energy yield.
• Max. PV Input Power (W): The inverter can actively process and convert a maximum of 9600W of DC power from your solar panels at any given moment. While you can connect a larger PV array (up to 12000W), the inverter efficiently utilizes up to 9600W, optimizing performance and prolonging its lifespan.
• Max. PV Input Voltage (V): Handles a maximum PV input voltage of 500V, providing flexibility in string configuration.
• Start-up Voltage (V): Features a low start-up voltage of 125V, allowing for earlier power generation each day.
• MPPT Voltage Range (V): Operates within an optimal MPPT voltage range of 150-425V, ensuring efficient power tracking.
• Rated PV Input Voltage (V): Has a rated PV input voltage of 370V.
• Max. Operating PV Input Current (A): Supports a significant maximum operating PV input current of 18+18A.
• Max. Input Short-Circuit Current (A): Can safely handle a maximum input short-circuit current of 27+27A.
• No. of MPP Trackers/No. of Strings MPP Tracker: Equipped with 2 Maximum Power Point Trackers (MPPTs), each managing 1+1 strings, for enhanced efficiency and flexibility in array design.

AC Output Data: Stable & Clean Power Delivery

The deye 6kw off grid inverter provides reliable and high-quality AC power:

• Rated AC Output Power (VA/W): Delivers a robust 6000VA/6000W of rated AC output power.
• Max AC Output Power (VA/W): Supports a maximum AC output power of 6000VA/6000W.
• Max AC Output Current (A): Features a maximum AC output current of 26.1A.
• Peak Power (W): Offers a substantial peak power of 2 times the rated power for 10 seconds, efficiently handling sudden load increases.
• Rated Output Voltage (V): Operates at a rated output voltage of 230V.
• Output Type: L-N+PE.
• Rated Output Frequency: Supports 50Hz/60Hz.
• Output Voltage Waveform: Produces a Pure Sine Wave, ideal for sensitive electronics.
• Total Current Harmonic Distortion THDi: Maintains a very low total current harmonic distortion of less than 3%, ensuring clean power output.

AC Input Data (Grid and Generator): Enhanced Versatility

This Deye 6kw off grid inverter offers flexible AC input capabilities for grid and generator integration:

• Max. Input Power to Battery (W): Allows up to 6000W of power input to the battery.
• Rated Input Voltage (V): Supports a rated input voltage of 230V.
• Rated Input Frequency: Operates at 50Hz/60Hz.
• Grid Input Current (A): Features a grid input current of 35A.
• Generator Input Current (A): Supports a generator input current of 35A.

Efficiency: Maximizing Energy Conversion

The Deye 6kw off grid inverter is designed for high energy conversion efficiency:

• Max. Efficiency: Achieves a remarkable maximum efficiency of 97.60%.
• Euro Efficiency: Boasts an excellent Euro efficiency of 96.50%.
• MPPT Efficiency: Delivers superior MPPT efficiency of greater than 99%, ensuring your solar panels operate at their peak.

Equipment Protection: Comprehensive Safeguards

The Deye 6kw off grid inverter comes with a full suite of integrated protection features to ensure long-term safety and reliability:

• DC Polarity Reverse Connection Protection
• AC Output Overcurrent Protection
• Thermal Protection
• AC Output Overvoltage Protection
• AC Output Short Circuit Protection
• DC Component Monitoring
• Overvoltage Load Drop Protection
• Ground Fault Current Monitoring
• Arc Fault Circuit Interrupter (optional)
• Power Network Monitoring
• Island Protection Monitoring
• Earth Fault Detection
• DC Input Switch
• DC Terminal Insulation Impedance Monitoring
• Residual Current (RCD) Detection
• Surge Protection Level: Provides robust TYPE II (DC) and TYPE II (AC) surge protection.

General Data: Durable and Adaptable Design

The robust construction and thoughtful design of the Deye 6kw off grid inverter ensure enduring performance in diverse environments:

• Operating Temperature Range (°C): Engineered to perform reliably across a wide operating temperature range from -40 to +60°C, with derating above 45°C.
• Permissible Ambient Humidity: Functions perfectly in 0-100% ambient humidity.
• Permissible Altitude: Operates reliably up to an altitude of 3000m.
• Noise (dB): Operates quietly with a low noise level of less than 55dB.
• Ingress Protection (IP) Rating: Boasts an IP65 rating, providing superior protection against dust and water ingress, making it suitable for various installation environments.
• Inverter Topology: Utilizes a Non-Isolated inverter topology.
• Over Voltage Category: Classified as OVC II(DC) and OVC II(AC).

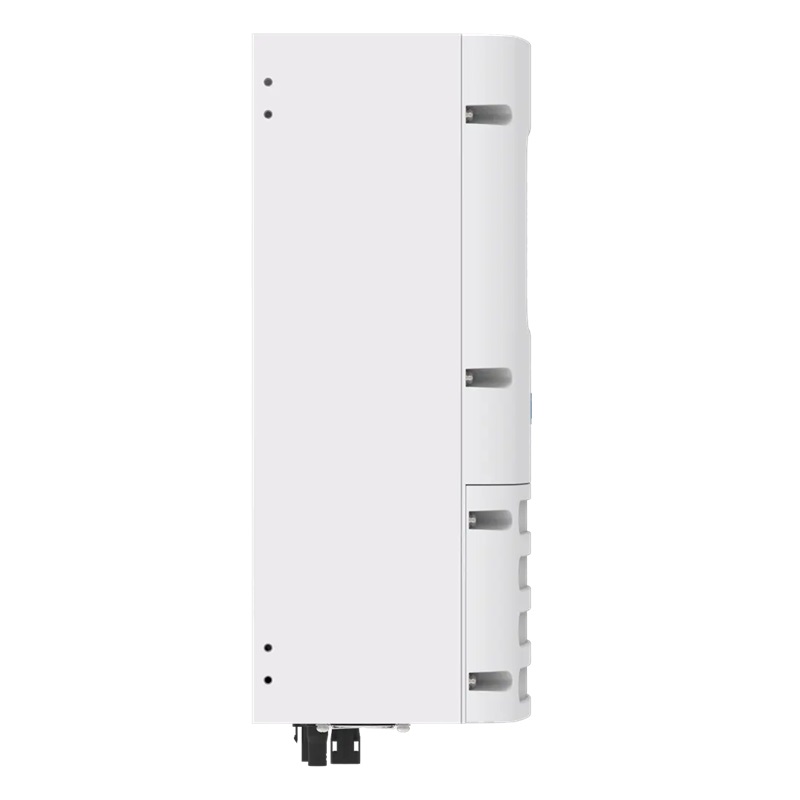

• Cabinet Size (WxHxD mm): Features compact dimensions of 306×427.5×175.77 mm (excluding connectors and brackets).
• Weight (kg): Weighs a manageable 12.65 kg, facilitating easier installation.
• Type of Cooling: Employs Intelligent Air Cooling for efficient thermal management, prolonging component life.
• Warranty: Comes with a standard 5-year warranty, with options for extended warranty, offering long-term assurance.

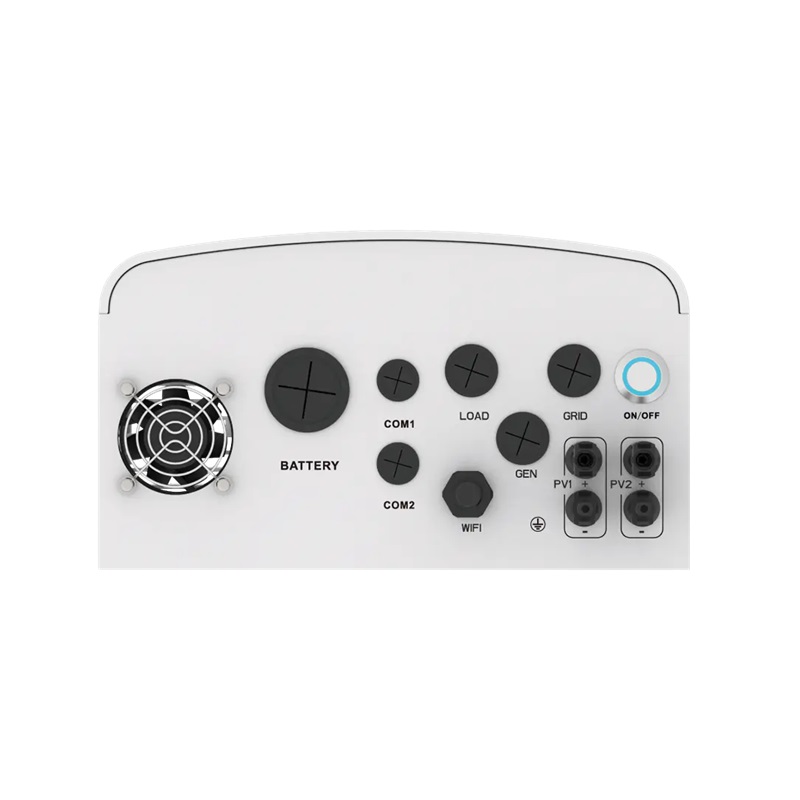

Interface & Monitoring: Stay Connected to Your Power

The Deye 6kw off grid inverter offers intuitive interfaces and multiple communication options for seamless monitoring and control:

• LCD/LED Display: Features an LCD display for direct monitoring.
• Communication Interface: Equipped with WIFI/RS485/CAN/Bluetooth for versatile data exchange.
• Monitor Mode: Supports various monitoring modes to keep you informed of your system’s performance remotely.

Check this Deye off grid inverters datasheet for more information

Embrace Complete Energy Autonomy with the Deye 6kw off grid inverter

The Deye 6kw off grid inverter (SUN-6K-OG01LP1-EU-AM2) is the definitive choice for those seeking freedom from grid reliance. This powerful, intelligent, and rugged inverter empowers you to build a self-sufficient energy system that delivers reliable power, saves on electricity costs, and provides peace of mind. Invest in the Deye 6kw off grid inverter and step into a future of true energy independence.
