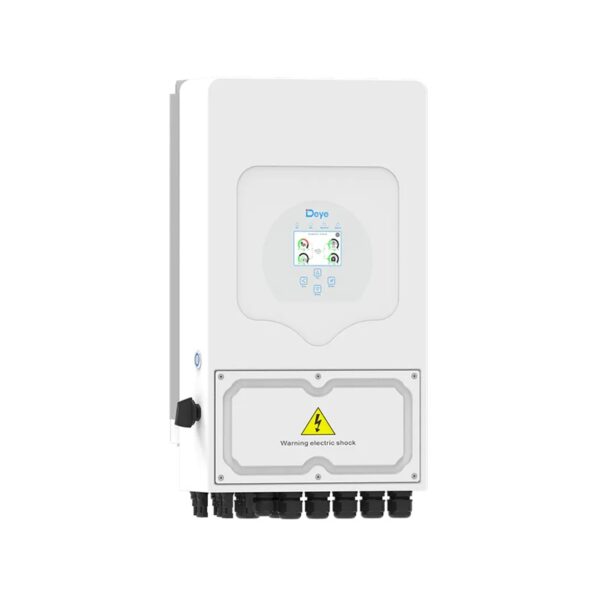

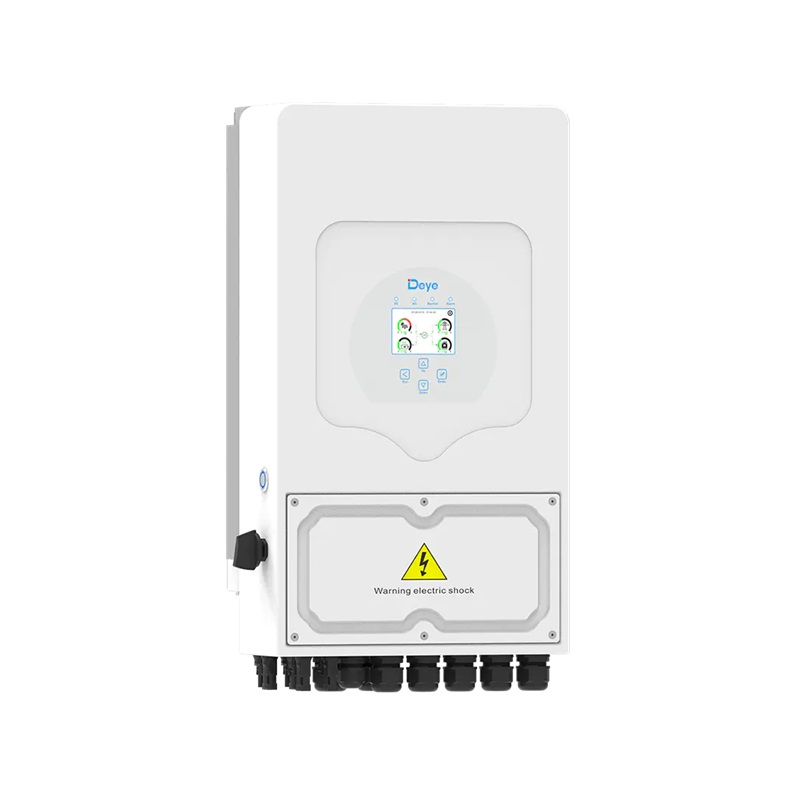

Deye 8kW Hybrid Inverter: Your Smart Choice for Home Energy

Power Your Home, Your Way, with the Deye 8kW Hybrid Inverter

Imagine a home where power outages are a distant memory and your electricity bills are dramatically reduced. The Deye 8kW Hybrid Inverter (Model: SUN-8K-SG05LP1-EU-AM2-P) makes this vision a reality.

This state-of-the-art single-phase hybrid inverter is the ultimate solution for integrating solar power, battery storage, and grid electricity, providing a seamless and intelligent energy system for your home in Kenya, and beyond. Choose the Deye 8kW Hybrid Inverter for a future of reliable, efficient, and independent power.

Why the Deye 8kW Hybrid Inverter is a Game-Changer:

The Deye 8kW Hybrid Inverter isn’t just an inverter; it’s a comprehensive energy management hub designed for modern living. Here’s what sets it apart:

• Flexible Battery Options: Whether you prefer robust lead-acid or advanced lithium-ion batteries, this inverter is compatible, offering you choices for your energy storage needs.
• Easy Solar Integration: Already have solar panels? The Deye 8kW Hybrid Inverter can easily integrate with your existing system thanks to its AC coupling feature.
• Expandable Power: Need more power in the future? This inverter allows up to 16 units to be connected in parallel for both on-grid and off-grid operations. Your energy system can grow with you.
• Smart Energy Control: Optimize your energy usage with 6 customizable time periods for battery charging and discharging. This means you can store power when it’s cheap and use it when rates are high.
• Diesel Generator Compatibility: For ultimate peace of mind, the inverter supports storing energy from a diesel generator, ensuring you always have backup power.
• Top-Tier Safety Features: Your safety is paramount. The Deye 8kW Hybrid Inverter includes extensive protection against issues like overcurrent, overvoltage, short circuits, and ground faults, ensuring safe and reliable operation.

Discover the Power: Deye 8kW Hybrid Inverter Technical Specifications

Let’s look at the precise details that make the Deye 8kW Hybrid Inverter a leader in performance and reliability:

Battery Management: Smart Storage for Your Energy

The Deye 8kW Hybrid Inverter intelligently manages your battery power:

• Battery Type: Compatible with both Lead-acid and Lithium-ion batteries.
• Voltage Range: Operates efficiently between 40-60V.
• Max. Charging Current: Boasts a powerful maximum charging current of 190A, ensuring rapid battery replenishment.
• Max. Discharging Current: Delivers an equally robust maximum discharging current of 190A, capable of meeting high demand loads.
• Lithium-ion Battery Charging: Adapts automatically to your battery’s BMS for optimized and safe charging protocols.
• Number of Battery Inputs: Designed with a single battery input.

Solar Input: Maximizing Your PV Yield

Get the most from your solar panels with the Deye 8kW Hybrid Inverter:

• Max. PV Access Power (16000W): This represents the maximum total DC power that your solar panel array can be connected to the inverter. It’s the maximum wattage of solar panels you can physically wire up, providing flexibility for system design and allowing for potential future additions, even if the inverter won’t process all of it simultaneously.
• Max. PV Input Power (12800W): This is the maximum DC power that the inverter can actually process and convert from your solar panels at any given moment. While you can connect up to 16000W of solar panels, the inverter will efficiently convert and utilize up to 12800W for your home’s needs or battery charging. Any power generated above this limit is simply not used by the inverter at that specific instant, a common practice known as “clipping” which helps optimize system performance in varying conditions.
• Max. PV Input Voltage: Handles up to 500V from your solar array.
• Start-up Voltage: Starts generating power at a low 125V.
• MPPT Voltage Range: Efficiently tracks power within a 150-425V range.
• Rated PV Input Voltage: Has a rated PV input voltage of 370V.
• Max. Operating PV Input Current: Supports 32+32A for active solar input.
• Max. Input Short-Circuit Current: Can handle 48+48A in short-circuit conditions.
• MPPTs & Strings: Features 2 Maximum Power Point Trackers (MPPTs), each handling 2+2 strings, for optimal solar panel configuration and performance.

AC Performance: Reliable Power In and Out

The Deye 8kW Hybrid Inverter ensures stable and clean power for your home:

• Rated AC Power (Active): Provides 8000W of active AC power.
• Max. AC Power (Apparent): Supports up to 8800VA of apparent AC power.
• Rated AC Current: Rated at 36.4/34.8A for AC input/output.
• Max. AC Current: Capable of a maximum 40/38.3A for AC input/output.
• Max. Continuous AC Passthrough: Allows a continuous 50A passthrough from the grid to your loads.
• Off-grid Peak Power: Delivers 2 times its rated power for 10 seconds in off-grid mode, handling power surges.
• Power Factor Adjustment: Flexible power factor adjustment from 0.8 leading to 0.8 lagging.
• Voltage/Frequency: Supports 220/230V with frequency ranges of 50/45-55Hz or 60/55-65Hz.
• Grid Connection: Uses a standard L+N+PE grid connection.
• Harmonic Distortion: Produces clean power with less than 3% total current harmonic distortion.
• DC Injection Current: Maintains low DC injection current at less than 0.5% In.

Efficiency: Maximizing Your Energy Savings

The Deye 8kW Hybrid Inverter is built for outstanding energy conversion efficiency:

• Max. Efficiency: Achieves an impressive 97.6% maximum efficiency.
• Euro Efficiency: Boasts an excellent 96.5% Euro efficiency.
• MPPT Efficiency: Ensures over 99% efficiency in Maximum Power Point Tracking.

Robust Protection for Peace of Mind

The Deye 8kW Hybrid Inverter includes a full suite of safety features, providing comprehensive protection for your system and home:

• DC Polarity Reverse Connection Protection
• AC Output Overcurrent Protection
• Thermal Protection
• AC Output Overvoltage Protection
• AC Output Short Circuit Protection
• DC Component Monitoring
• Overvoltage Load Drop Protection
• Ground Fault Current Monitoring
• Arc Fault Circuit Interrupter (optional)
• Power Network Monitoring
• Island Protection Monitoring
• Earth Fault Detection
• DC Input Switch
• DC Terminal Insulation Impedance Monitoring
• Residual Current (RCD) Detection
• Surge Protection: Equipped with robust TYPE II surge protection for both DC and AC sides.

General Data: Durable Design for Any Environment

The robust construction and thoughtful design of the Deye 8kW Hybrid Inverter ensure long-term reliability:

• Operating Temperature: Functions reliably from -40 to +60°C (with derating above 45°C).
• Humidity: Operates in 0-100% ambient humidity.
• Altitude: Performs optimally up to 2000m.
• Noise Level: Operates quietly, below 30dB.
• IP Rating: IP65 rated for excellent dust and water protection, making it suitable for various indoor and outdoor installation environments.
• Topology: Non-Isolated inverter topology.
• Over Voltage Category: OVC II (DC), OVC III (AC).
• Dimensions (WxHxD): Compact at 330×580×232 mm (excluding connectors and brackets).
• Weight: Weighs 24.9 kg, facilitating easier installation.
• Cooling: Features Intelligent Air Cooling for optimal temperature control and extended component life.
• Warranty: Comes with a substantial 5-year warranty, extendable to 10 years (dependent on the final installation site).

Connectivity & Control: Your System at Your Fingertips

Stay connected and in control of your energy system with multiple communication options:

• Communication Interfaces: Equipped with RS485/RS232/CAN for versatile data communication.
• Monitoring Modes: Offers GPRS, WIFI, Bluetooth, 4G, and LAN (optional) for flexible remote monitoring. Keep an eye on your system’s performance from anywhere, anytime, ensuring peace of mind and efficient management.

Elevate Your Energy Experience with the Deye 8kW Hybrid Inverter

The Deye 8kW Hybrid Inverter (SUN-8K-SG05LP1-EU-AM2-P) is more than just an inverter; it’s a strategic investment in energy independence, efficiency, and sustainability. Perfect for homes in Nakuru and across Kenya, this powerful, intelligent, and reliable device will transform how you consume and manage electricity. Embrace the future of home power with the Deye 8kW Hybrid Inverter.
